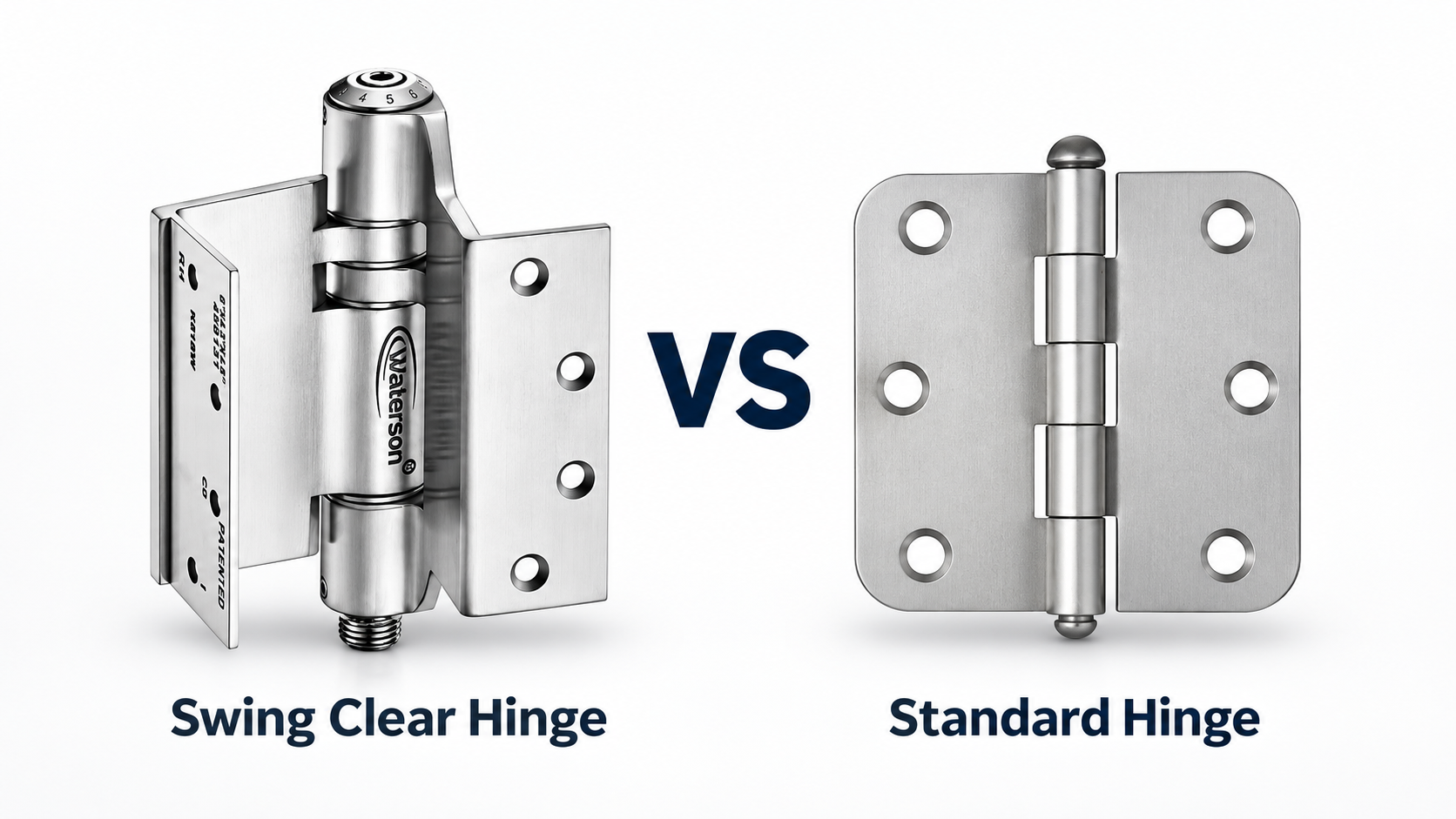

Swing Clear Hinges for ADA Doors: How they Outperform Standard Hinges?

On an ADA opening, two hinges that sit one line apart on a hardware schedule can give you very different inspection results. The whole difference shows up in three numbers you already track: clear width, maneuvering clearance, and opening force. Below is where a standard hinge tends to lose ground on each one, and where a swing clear hinge holds it.

The three numbers to check before you spec

If you want the short version, walk your opening through these three checks in order. If a standard hinge trips any of them, a swing clear hinge is usually the cleaner fix.

1. Clear width at 90 degrees. Does the door panel stay inside the opening and eat into your 32 inches?
2. Maneuvering clearance on the push side. Does an added closer body or arm reach into the space the code measures?
3. Opening force. Can someone still pull the door open under 5 pounds after you make it self-close?

Where does the 32-inch clear width actually go on a standard hinge?

The 2010 ADA Standards, section 404.2.3, ask for a 32-inch minimum clear width, measured from the face of the door to the stop with the door open at 90 degrees. On paper a 36-inch slab passes without a second thought. On a real opening, that margin can close fast.

A standard full-mortise butt hinge pivots the door on a barrel set tight to the jamb. At 90 degrees, the thickness of the panel (usually 1-3/4 inches on a commercial door) is still sitting inside the opening, and the stop plus the frame reveal take another bite. On a fixed 34-inch slab, that combination can land right at, or just under, 32 inches, which leaves almost nothing for installation tolerance.

A swing clear, or offset, hinge uses a cranked leaf that carries the panel out of the opening as it swings. That recovers the door thickness and pushes the clear width back above the minimum on the exact same slab.

In practice, the width you recover is close to the thickness of the door itself, and that is often exactly what separates a borderline opening from a compliant one.

Can the door still open under 5 pounds after the retrofit?

ADA and ICC A117.1 cap the opening force on interior doors at 5 pounds. This is the one the "just add a spring hinge" approach tends to miss. Spring tension high enough to pull a rated door fully latched can push the opening force past 5 lbf, and that affects exactly the users these openings are meant to serve: wheelchair users, the elderly, and anyone moving through the door with their hands full.

This is the balance swing clear hinges for ADA doors are built to hold. A self-closing swing clear hinge is tuned to close the door reliably while staying inside the 5 lbf opening range, so accessibility and positive latching stop working against each other. Closing performance and opening force come from one component, and you adjust it on site instead of estimating it during specification.

What does Waterson build into a single swing clear hinge?

Waterson integrates the closing function into the hinge body, which keeps all of the following out of the maneuvering space.

• Stainless steel: 304 stainless steel with a satin US32D finish, corrosion resistant for interior corridors and all-weather exterior openings, with PVD and powder-coat options for design match.
• Self-closing mechanism: controlled, adjustable self-close with no surface closer, so the push-side clearance stays open.
• Built-in door stop (optional at 90 degrees): integrated stop, with no floor or wall stop projecting into the accessible path.
• Hold-open (optional at 90 degrees): holds a door open for accessible passage or moving equipment, then returns to self-closing duty.
• Heavy duty: supports 260 lbs (118 kg) with three hinges and up to 330 lbs (150 kg) with four, sized for wide, tall commercial leaves.
• Anti-slam fluid motion: a hydraulic hybrid buffer slows the door through the final degrees of travel, reducing pinch and impact injuries.
• Fire rated: UL 3-hour fire-rated hardware, UL Grade 1, NFPA 80 compliant.
• ADA opening force: adjustable into the 5 lbf range required by ADA and ICC A117.1.
• Warranty: backed by Waterson's manufacturer warranty. (Insert your exact warranty term here.)

Which K51L-SW configuration matches your door and closing type?

The table below covers the 4.5 by 4.5 inch line for 1-3/4-inch doors in 304 stainless steel. Closing type splits into mechanical (M) and hydraulic hybrid (H, which adds soft-close fluid motion). Configurations A and B self-close without hold-open, while C and D add the 90-degree hold-open feature. Max weight is listed in both lbs and kg.

One note on hold-open: the K51L-SW line is UL 3-hour fire-rated hardware, but a door required to self-close on a fire-rated assembly should not be left on standing hold-open unless it is paired with a listed automatic-closing release. Reserve the hold-open configurations for openings that do not require automatic closing, or confirm the assembly listing before you spec them.
