What Is ADA Door Compliance and How Do Hinges Affect It?

If you spec doors for commercial or public spaces, you probably know the basics of ADA compliance: clear width, opening force, closing speed. What most people miss is how much of that compliance burden actually falls on the hinge itself, not the door, not the frame, and not some separate overhead closer bolted on as an afterthought.

This post breaks down exactly what the ADA requires, where hinges fit into the picture, and what to look for when you need a door that actually passes inspection.

What ADA Door Compliance Actually Requires

The 2010 ADA Standards for Accessible Design set the rules. The ADA does not specify individual hardware products, but it mandates how a door must perform, which means your hardware choices either get you there or they do not. Here is what a compliant door needs to meet:

Can a Door Be ADA Certified?

Short answer: no. This is one of the most common misconceptions in the industry. Door hardware can be labeled "ADA compliant," but no government body certifies individual components. ADA standards apply to entire facilities, not product SKUs. When a manufacturer says a hinge is "ADA compliant," it means the product meets the performance thresholds the law requires. That is it.

Where Hinges Fit Into the Compliance Picture

Not all hinges do the same job when it comes to compliance. Here is how the three main options stack up:

1. Standard Butt Hinges

   Standard butt hinges hold the door in place and that is their entire job. They have no role in ADA compliance. If you use them, the closing mechanism has to come from somewhere else, usually an overhead closer.

2. Overhead Closers

   Overhead closers solve the closing speed and force problem but create a new one. Under ADA Protruding Objects Chapter 307.4, headroom clearance of at least 80 inches is required along all circulation paths, and no closer arm is allowed within the 78-inch minimum clearance zone. On an 80-inch door, it is essentially impossible to install a top-mounted closer and meet that requirement at the same time. You are stuck.

3. Self-Closing Hinges

   Self-closing hinges integrate the closer directly into the hinge barrel, so there is no overhead arm to worry about. This sidesteps the vertical clearance problem entirely. The key word here is "adjustable": a fixed spring will not cut it. You need a hydraulic mechanism that can be tuned to hold opening force at 5 lbs (2.27 kg) or less and keep closing speed at 5 seconds or more, reliably, over years of use.

The Clear Width Problem and How Hinges Cause It

A 36-inch door does not automatically give you 32 inches of clear opening. Door panel thickness, hinge barrel size, and the door stop all eat into that number. A typical bathroom stall door at 34 inches wide and 1 3/4 inches thick gives you just about 32 1/4 inches of clearance in theory, but installation tolerances can push that below the 32-inch minimum.

Swing-clear hinges with a wide-diameter barrel design address this directly. The geometry of the barrel sweeps the door clear of the frame as it opens, consistently delivering 33 inches or more of clear opening on a standard 36-inch door. That extra inch is not cosmetic, it is insurance against the real-world slop of installation.

ADA Compliance Parameters at a Glance

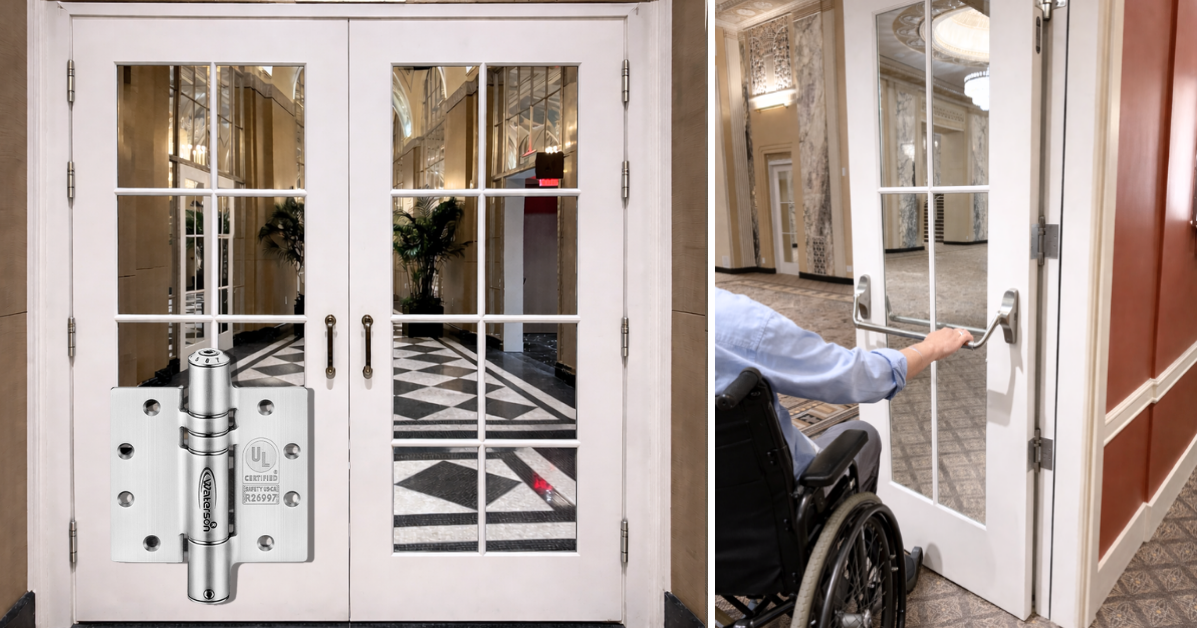

How Waterson Hinges Address ADA Door Compliance

Waterson self-closing ADA compliant door closers combine the reliability of a closer with the simplicity of a hinge, making ADA accessibility both easier to design and smoother to use. Here is how each feature maps to a compliance requirement:

• Self-Closing and Soft Closing: Self-closing and soft-closing functions are built into a single hinge barrel

• Opening Force: 5 lbs or less, meeting ADA interior door requirements without additional hardware.

• Closing Speed: Adjustable hydraulic control ensures the door takes at least 5 seconds to close from 90 degrees, with no slamming.

• Clear Width: Wide-diameter barrel geometry consistently delivers 33 inches or more of clear opening on standard 36-inch doors.

• One-Hand Operation: No tight grasping or twisting required, satisfying ADA Section 404.2.7 at the hardware level.

• Vertical Clearance: Hinge-integrated closer eliminates the overhead arm that violates the 78-inch headroom rule.

• ANSI/BHMA A156.17 Grade 1: UL-listed to one million cycles, ensuring compliance performance holds up over the life of the installation.

• 316 Stainless Steel: Available for exterior and coastal applications where corrosion would otherwise degrade opening force over time.

• PVD Finish: Aesthetic versatility without compromising the durability that keeps force profiles in spec long term.

ADA door compliance is a system question: closing speed, opening force, clear width, vertical clearance, and hardware operability all have to land within spec at the same time. The hinge is the component that either solves all of those requirements in one place or forces you to stack
