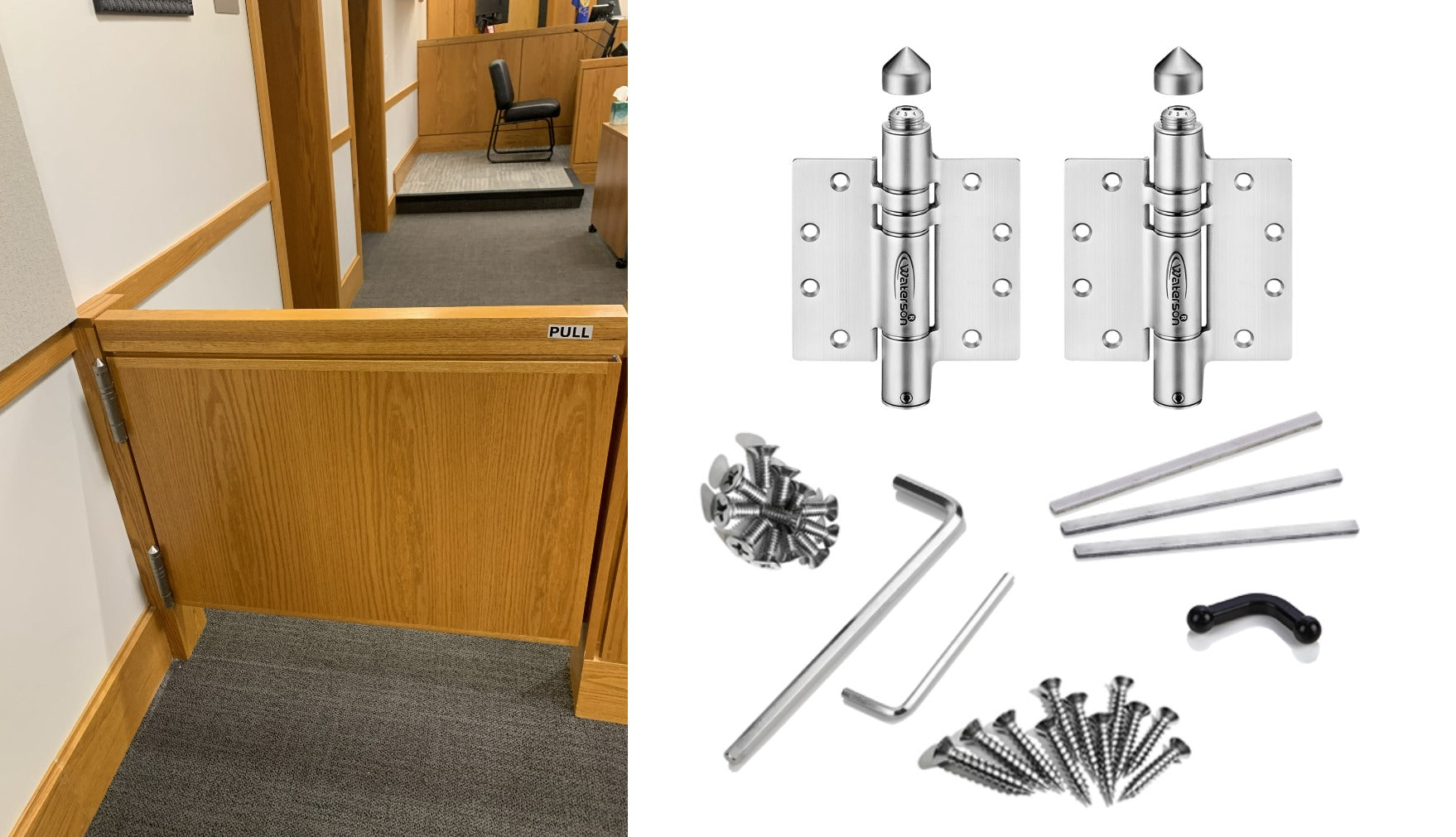

Courtroom Swing Door Hinges: What a Courtroom Door Really Needs
The small swinging door in a courtroom gets opened hundreds of times a day, and it has to close quietly, reliably and on its own every single time. That gate is usually a solid wood half door hung on just two hinges, so the hinges do all the work: they carry the weight, return the door to center, and control how fast it closes.
Where Do Swing Gates Show Up in a Courtroom, and What Does Each One Need?
A typical courtroom has three to six small swinging gates, and every one of them sits on an accessible route. They are low, usually 32 to 42 inches tall, and most are built by the same millwork shop that builds the bench and the rail. Each location has its own job, so each needs slightly different features from its hinges.
| Location | What it separates | Traffic pattern | Key features needed |
|---|---|---|---|
| Bar rail gate | Public gallery from the well (counsel tables) | Highest: attorneys, defendants, staff, all day | Reliable self closing every time, firm return to center, sag resistance for a heavy hardwood leaf with cap rail |
| Jury box gate | Jury seating from the well | Bursts at recess and verdict | Quiet soft close, controlled speed, ADA accessible route |
| Witness stand gate | Witness box from the well | One person at a time, often nervous or using a mobility aid | Opening force under 5 lbf, slow close of at least 5 seconds so the leaf never strikes a walker or wheelchair, silent final close |
| Judge bench and clerk station gates | Raised work areas from the floor | Staff only, frequent | Discreet look that matches the millwork, dependable self closing |
| Service counter gates | Clerk office lobby from staff area | Public facing, all day | Self closing for security, high cycle durability, clean appearance |
Across every location the same baseline applies. Under the 2010 ADA Standards a gate on an accessible route is treated like a door: interior opening force under 5 lbf, at least 32 inches of clear width, and at least 5 seconds to close from 90 degrees to 12 degrees. On top of that, the hardware must stay invisible next to formal millwork and run for years without service calls. That is a job a normal butt hinge cannot do.
Why Do Ordinary Hinges Fail on Courtroom Gates?
| Common setup | What goes wrong in a courtroom |
|---|---|
| Plain butt hinges | Gate stays wherever it was left; the bar is open half the day |
| Basic spring hinges | No speed control, so the gate snaps shut, fails ADA closing speed and slams during testimony |
| Overhead or surface closer | Arm looks out of place on a 36 inch half door, needs a header that the gate post does not have |
| Floor spring or pivot | Requires cutting the slab, hard to retrofit, expensive to service |
| Double acting cafe hinges | Swing both ways and keep swinging, so the gate rarely settles cleanly at center |
On top of that, a heavy hardwood leaf on two light hinges will sag within a year or two. Once the latch edge drops, the gate rubs the floor or binds on the post, and the opening force climbs past what ADA allows.
How Does a Waterson Closer Hinge Solve It?
A Waterson K51M closer hinge puts the door closer inside the hinge barrel, so a two hinge set carries the gate, closes it, and controls its speed with no visible closer at all. Each hinge has a numerical adjustment panel on the barrel end, so the installer can tune closing power to the exact weight of the gate and the room conditions. The hinges are full mortise, investment cast stainless steel, and they fit standard hinge templates, so millwork shops do not need to change how they prep the post.
| Gate thickness | Hinge size | Self closing | Soft closing |
|---|---|---|---|
| 1-3/8 in | 4 x 4 in | K51M-400-A2 | K51M-400-B2 |
| 1-3/4 in | 4.5 x 4.5 in |
For reference, a K51M-450-A2 set is rated for gates up to 4 x 6 ft and 150 lb, which comfortably covers a typical 36 x 42 inch hardwood bar gate.
What Certifications Back the Spec?
All six models carry the same three credentials, which is what a courthouse owner, architect or code reviewer will ask for.
| Credential | What it means for a courtroom gate | Document |
|---|---|---|
| ADA compliant | Opening force under 5 lbs, closing speed over 5 seconds | Waterson ADA solutions |
| UL listed | Meets NFPA 3 hour fire rated code, proof of build quality even on non rated gates | UL certificate |
| ANSI/BHMA A156.17 Grade 1 | Passed the one million cycle test, the top durability grade for self closing hinges | BHMA test report |
One million cycles is roughly 270 openings a day for ten years, which is a realistic load for a busy bar gate. For more on what the grade covers, see What Does ANSI/BHMA Grade 1 Actually Mean for Door Hinges?
Courtroom Gate Hinge FAQ
Can two hinges really carry a solid hardwood gate?
Yes, for typical half height gates. The K51M-450-A2 is rated to 4 x 6 ft and 150 lb, and the 500D uses a larger leaf for thicker, heavier gates.
Will the hinge work on a gate that is not fire rated?
Yes. The UL listing is there for rated openings, but it also tells you the hinge is built to a tested standard.
Can we retrofit existing courtroom gates?
Usually. The hinges fit standard hinge templates, so many gates can be upgraded by swapping the hinges and adjusting on site.
How do I make the gate close slower?
Turn the numerical adjustment panel on the hinge end. B2 sets add hydraulic damping for the slowest, quietest close. See our guide on fixing a door that closes too fast.
