What is Self Closing Door Hinge
Self-closing door hinges combine the function of an overhead closer into one compact and attractive component. Some models include optional hold-open and door-stop features. They’re ideal for commercial doors, gates, and frameless glass doors, offering both functionality and aesthetics in a single unit.
Self Closing Door Hinges vs Traditional Door Closers
Spring Loaded Self-Closing Hinges blend form and function by installing flush on the door’s side — just like regular hinges — making them a discreet yet powerful choice. Thanks to their weather resistance, low opening force, and vandal-resistant design, they’re a practical fit for both indoor and outdoor use. With PVD finish options, 1 million cycle certification, and UL-listed fire protection, they bring lasting value with minimal upkeep.
In contrast, traditional door closers mount above the door and require more room and effort to operate. Their exposed arms can disrupt the look of a space and are more prone to rust, damage, and maintenance issues — especially in high-traffic or exterior applications.
How do self closing door hinges work
We offer two closing types. One is purely mechanical and the other is hydraulic hybrid.

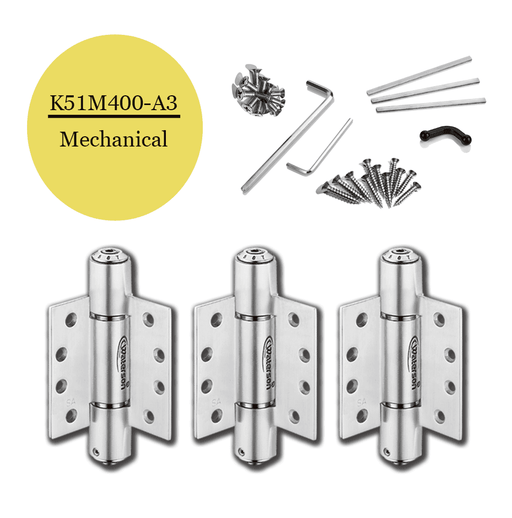

Purely Mechanical hinges are self-closing and ideal for high-frequency, heavy-duty applications such as hotel room doors, fire-rated doors, and arch-top doors. These hinges avoid pushing the door closed by hand — let it close on its own to prevent increased closing speed.
Hydraulic Hybrid hinges, on the other hand, offer soft-closing functionality and are perfect for environments where quiet and smooth door movement is essential. The oil-based braking system makes them especially effective in windy conditions, as they dynamically adjust closing resistance.
Main Difference:
Both hinge types are self-closing with adjustable speed. The key difference lies in wind adaptability:
- Mechanical hinges operate at a fixed closing speed.
- Hydraulic hybrid hinges automatically adjust to wind pressure, ensuring consistent and controlled closing in variable conditions.
Door Size Specifications
4" x 4" Hinges
Thickness: 1-3/8"
Max door size: 7' H x 4' W
Weight range: 60–260 lbs
4.5" x 4.5" Hinges
Thickness: 1-3/4"
Max door size: 7' H x 4' W
Weight range: 60–260 lbs
5" x 5" Hinges
Thickness: 1-3/4" to 2-1/4"
Max door size: 7' H x 4' W
Weight range: 60–260 lbs
For full specs and model breakdowns, see our catalog for more details.
Advantage of Self Closing Door Hinges
- ANSI/BHMA A156.17: Tested the one million cycles. Can handle the frequent opening and closing demands of commercial buildings
- ADA Compliant: Achieve 5 lbs of force, 5 seconds closing, and more than 32” clearance. This makes Waterson hinges accessible for all users.
Soft & Slow Closing: Reduces noise and impact, improving safety and comfort. - UL 3-Hour Fire Rated: Meets strict safety standards, making it suitable for fire-rated doors.
- Weatherproof: Waterson self closing door hinges are deal for exterior use, particularly in rugged or corrosive environments.
- Hold Open (optional): Keep doors open without additional unsightly parts.
- Adjustable Speed Control: Users can fine-tune closing speed to prevent slamming.
- Heavyweight Bearing & Heavy-Duty: Can handle from 260–440 lbs door and even more with special door cases. Ensuring long-term reliability.
Door Types for Self Closing Hinges
- Exterior door
- Fire door
- Interior door
- Glass door
- ADA Door
- Arch Door
- Fire Rated Door
- Garage Door
- Half Door
- Exterior Door
- Elevator door
- Garage door
